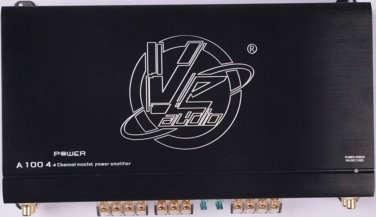

VE Audio
The Car Audio of High Fidelity
Design By USA, Made in China
Ratings by Manual-
100w x 4 4Ω 14.4v 1%THD
160w x 4 2Ω 14.4v 1%THD
320w x 2 4Ω 14.4v 1%THD
THD- 90dB
Inp. Sens.- 200mV - 8V
Fuse- 30Ax2
Dimensions- 11.42" x 5.91" x 1.89"
Power Supply- 7-16V
Buildhouse Tested Data-
94w x 4 4Ω 13.8v 1%THD
112w x 4 4Ω 13.8v 10%THD
139w x 4 2Ω 13.8v 1%THD
157w x 4 2Ω 13.8v 10%THD
296w x 2 4Ω 13.8v 1%THD
338w x 2 4Ω 13.8v 10%THD
Inp. Sens.- 183mV - 8.0V
THD- 0.36%
FR- =/-2dB 5Hz-50KHz
SNR- 72dB
Power Supply- 7.3-16.0v
Idle Consumption- 800mA
Torture Test Parameters-
Shorted Supply to 1.3V - PASS
Overload to 0.47Ω - PASS
Test at 4Ω Bridged 24hrs nonstop - PASS. No protection engaged.
18.0v, 0.75Ω loaded, max power, 24hrs pulse test non-stop- PASS. No damage detected.
Protection Parameters-
Thermal- 85C +/- 5C
Thermal Recover- -8C - -15C from 85C +/- 5C
Over V- 16V
Under V- 7V
Warranty- 1 Yr from date of purchase.
