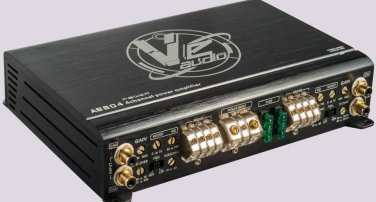

VE Audio
The Car Audio of High Fidelity
Design By USA, Made in China
Ratings by Manual-
80w x 4 4Ω 14.4v 1%THD
130w x 4 2Ω 14.4v 1%THD
260w x 2 4Ω 14.4v 1%THD
THD- 90dB
Inp. Sens.- 200mV - 8V
Fuse- 30Ax2
Dimensions- 9.06" x 5.91" x 1.89"
Power Supply- 7-16V
Buildhouse Tested Data-
78w x 4 4Ω 14.4v 1%THD
92w x 4 4Ω 14.4v 10%THD
120w x 4 2Ω 14.4v 1%THD
136w x 4 2Ω 14.4v 10%THD
229w x 2 4Ω 14.4v 1%THD
258w x 2 4Ω 14.4v 10%THD
Inp. Sens.- 180mV - 4.3V
THD- 0.23%
FR- =/-2dB 12Hz-45KHz
SNR- 74dB
Power Supply- 7.3-16.0v
Idle Consumption- 800mA
Torture Test Parameters-
Shorted Supply to 1.3V - PASS
Overload to 0.47Ω - PASS
Test at 4Ω Bridged 4hrs nonstop - PASS. No protection engaged.
14.4v, 4Ω Bridged, max power, >44hrs non-stop- PASS. No protection engaged.
Protection Parameters-
Thermal- 85C +/- 5C
Thermal Recover- -8C - -15C from 85C +/- 5C
Over V- 16V
Under V- 7V
Warranty- 1 Yr from date of purchase.
