Available in Custom Single 1ohm or 2ohm voice coil

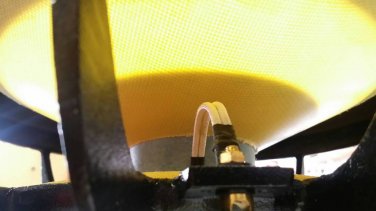

Single 1ohm model
Kevlar Yellow Cone
Carbon Fiber Dustcap
High Density Pressed Foam Surround
Aluminum Housing
RE- 0.9173 ohms
FS- 32.2101 Hz
Zmax- 18.6802 ohms
Qes- 0.6430
Qms- 11.1647
Qts- 0.6080
EBP- 50.0935 (sealed/ported/4th BP/6th BP)
Le- 1.5405 mH (1KHz)
Diam- 310 mm (12.2047")
Sd- 75476.7656 mm^2 (116.9892 in^2)
Vas- 43.5983 L (1.5397 ft^3)
BL- 12.0457 N/A
Mms- 453.1868 g
Cms- 53.8739 uM/N
Kms- 18561.8555 N/M
Rms- 8.2149 R mechanical
Efficiency- 0.2129%
Sensitivity- 85.2995 dB @1w/1m
Sensitivity- 94.2558 dB @2.83vrms/1m
Krm- 6.167E-03 ohms Freq Dependent Resistance
Erm- 749.029E-03
Kxm- 31.575E-03 Henries Freq Dependent Reactance
Exm- 642.535E-03
Xmax- 18.75mm
----------------------------------------------------------------------
Ftest- 27.919 Hz
Ftest/Fms- 0.8668
Test Mass Used- 150.0000 g (30.0 nickels)
Test Mass (Ft=Fms*0.90)- 106.303 g
Test Mass (Ft=Fms*0.75)- 352.479 g
